780 hp 3000 rpm
Seatek PLUS Series – 800 PLUS Type Approval
Based on the more powerful 850 PLUS, the 800 Plus combines power with certified reliability.
Following rigorous testing, it has obtained full RINA type approval — meeting the highest standards required by military and institutional clients for regulated vessels.
While all PLUS engines meet demanding operational standards, the 800 Plus adds the advantage of formal certification, easing compliance where type-approved systems are required.
Key Features at a Glance
MOD. 800 PLUS Type Approval - Technical Specifications
Configuration
Diesel Turbocharged 4 Stroke - Mechanical Injection
No. of Cylinders
6 in line
Bore / Stroke
127 / 135 mm
Total Displacement
10.3 L
No. of Valves
4 per cylinder
Dry Weight
940 Kg 2068 lbs
Max Output
573 kW (780 HP)
Max Speed
3000 rpm
Fuel Consumption
206 g/kWh (5,30 Ounce/HPh)
MOD. 800 PLUS Type Approval - Technical Specifications

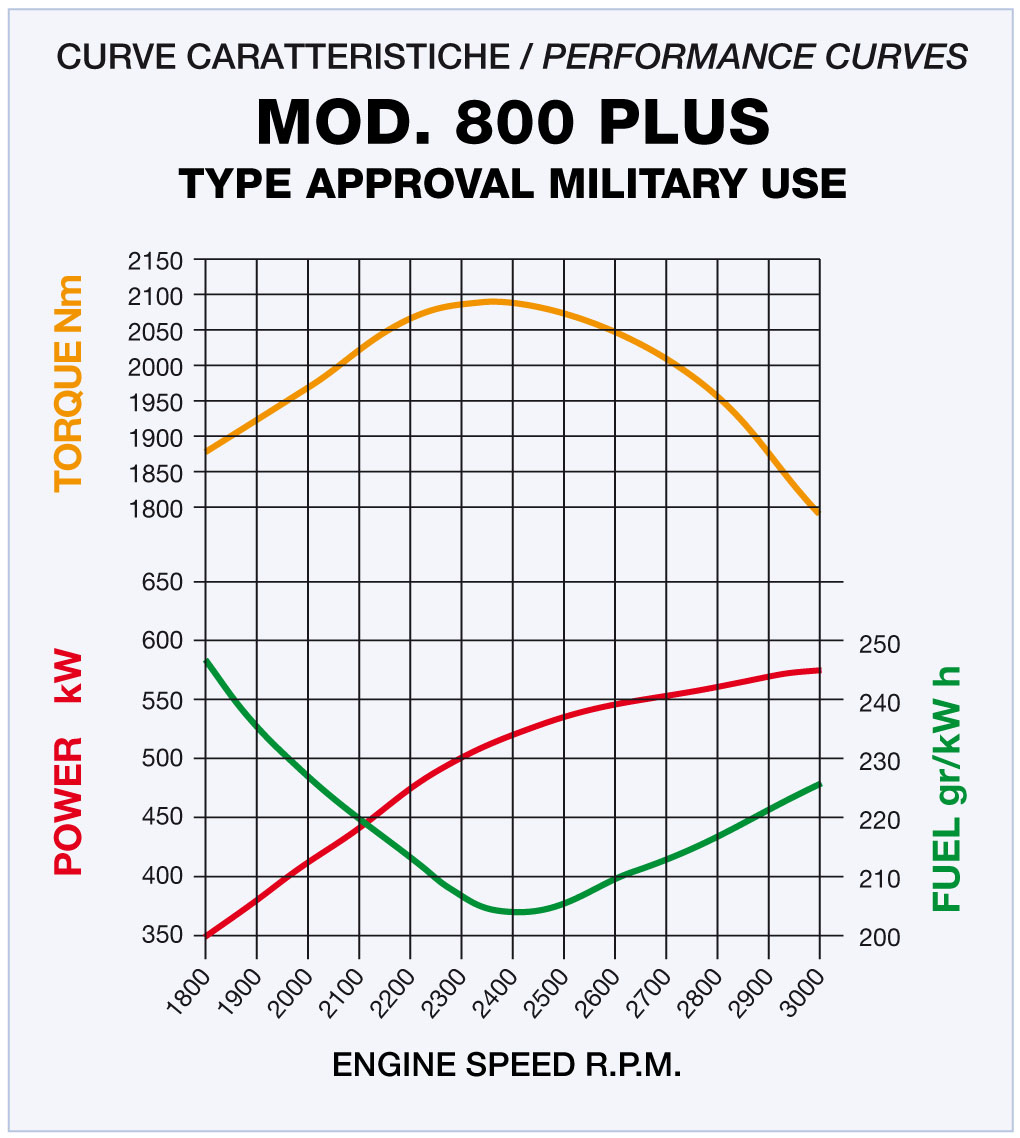

The performance curve chart for the MOD. 800 PLUS Type Approval engine illustrates three key parameters plotted against Engine Speed (RPM):
This graph provides a comprehensive view of the engine’s operational efficiency across varying speeds, helping optimize performance and fuel economy.
Torque (Nm)
- Starts around 1875 Nm at 1800 RPM
- Peaks slightly above 2050 Nm at around 2300 RPM
- Gradually decreases after the peak, dropping to about 1800 Nm at 3000 RPM
Power (Kw)
- Starts at around 350 kW at 1800 RPM
- Increases steadily and plateaus around 570 kW between 2300–2600 RPM
Fuel Consumption(gr/kWh)
- Begins high at about 245 gr/kWh at 1800 RPM
- Decreases to a minimum (around 205 gr/kWh) near 2400 RPM
- Then it rises again towards 225 gr/kWh at 3000 RPM

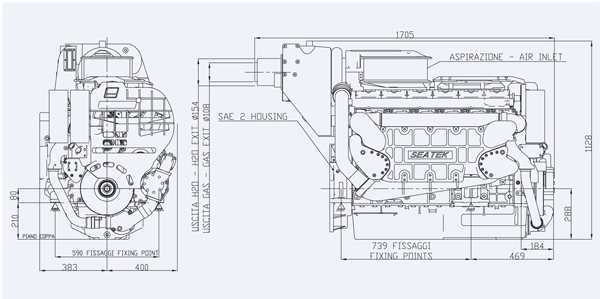

Dimensions
