800 hp 3000 rpm
Seatek CR-Series – 800 CR
The 800 CR integrates Common Rail technology to deliver sharper response, cleaner combustion, and increased efficiency.
Designed for high-demand vessels, it provides consistent mid-range torque and smooth output across a wide RPM band, ensuring confident performance in both sprint and sustained operations.
Engineered for endurance, it requires minimal maintenance while performing reliably under pressure—ideal for fast patrol boats, tenders, and commercial duty cycles.
Key Features at a Glance
MOD. 800 CR - Technical Specifications
Configuration
Diesel turbocharged 4 stroke – common rail injection
No. of Cylinders
6 in line
Bore / Stroke
127/135 mm (5/5.3 in)
Total Displacement
10.3 Lt.
No. of Valves
24
Dry Weight
940 kg (no gearbox)
Rated Power
588 kW – 800 HP
Speed
3000 rpm
Flywheel Housing
SAE 2
Gearbox Type
ZF 325-1 (A) or ZF 305.3 (A)
Optimization of Exhaust Emissions
CE RCD 2013/53/UE
MOD. 800 CR Technical Specifications

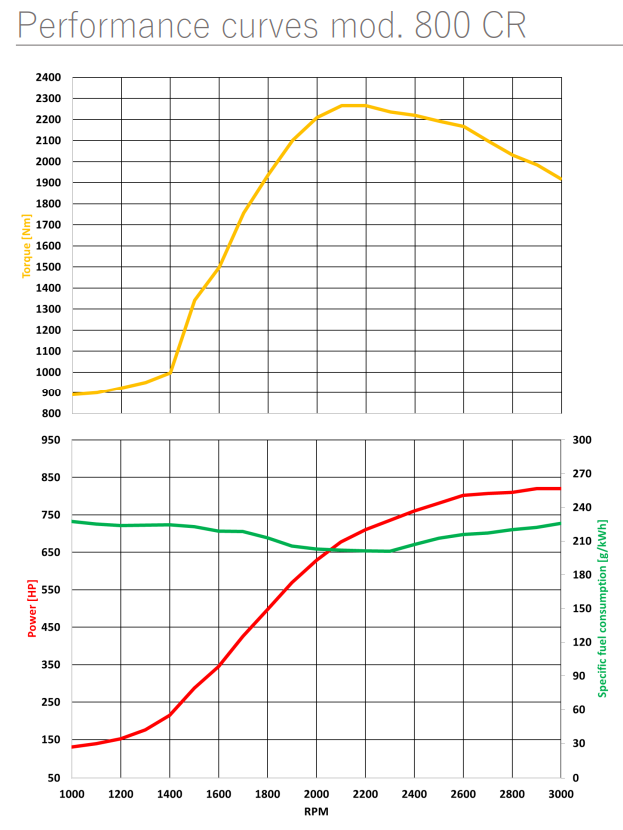

The performance curve chart for the MOD. 800 CR engine illustrates three key parameters plotted against Engine Speed (RPM):
This graph provides a comprehensive view of the engine’s operational efficiency across varying speeds, helping optimize performance and fuel economy.
Torque (Nm)
- Starts around 900 Nm at 1000 RPM
- Peaks slightly above 2200 Nm at around 2100 RPM
- Gradually decreases after the peak, dropping to about 1900 Nm at 3000 RPM
Power (Kw)
- Starts at around 150 hp at 1000 RPM
- Increases steadily and plateaus above 800 hp between 2600–3000 RPM
Fuel Consumption(gr/kWh)
- Begins high at about 230 gr/kWh at 1000 RPM
- Decreases to a minimum (around 200 gr/kWh) near 2100 RPM
- Then it rises again towards 230 gr/kWh at 3000 RPM

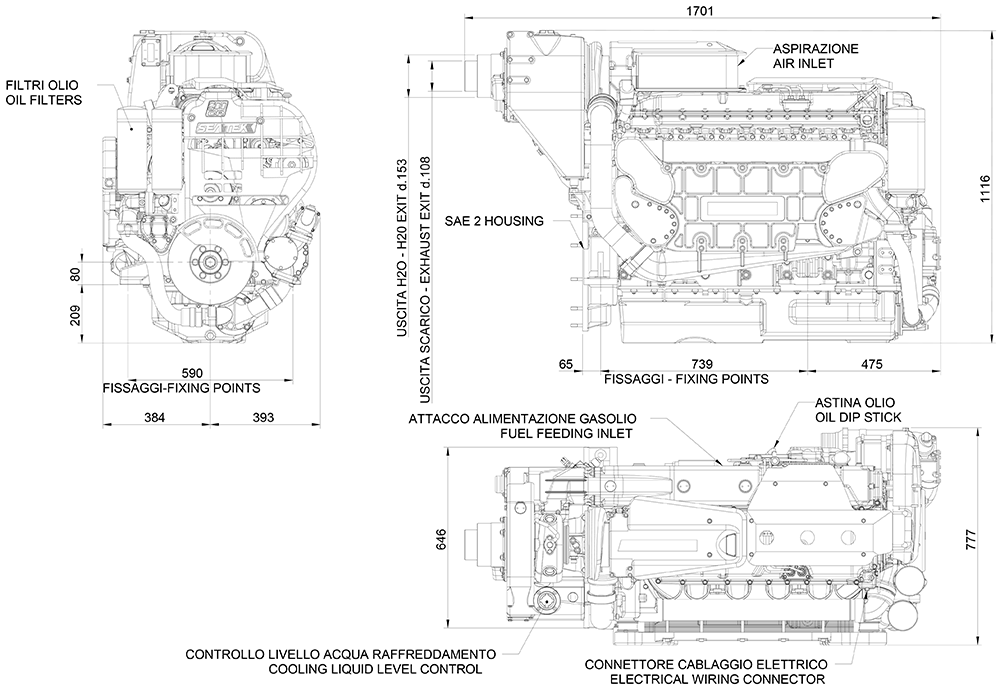

Dimensions
