700 hp 2700 rpm
Seatek CR-Series – 700 CR
The 700 CR introduces Common Rail technology for cleaner combustion, lower emissions, and sharper response — while maintaining the durability and reliability that define the PLUS series.
It delivers strong low-end torque across a wide RPM range, making it ideal for demanding patrol and workboat operations.
Compatible with hydrojets and traditional propeller drives, the 700 CR also features long maintenance intervals for dependable, mission-ready performance.
Key Features at a Glance
MOD. 700 CR - Technical Specifications
Configuration
Diesel turbocharged 4 stroke – common rail injection
No. of Cylinders
6 in line
Bore / Stroke
127/135 mm (5/5.3 in)
Total Displacement
10.3 Lt.
No. of Valves
24
Dry Weight
940 kg (no gearbox)
Rated power
515 kW (700 hp)
Speed
2700 rpm
Flywheel housing
SAE 2
Gearbox type
ZF 305.3 (A)
Optimisation of exhaust emissions
Emissions CE RCD 2013/53/UE
MOD. 700 CR - Technical Specifications

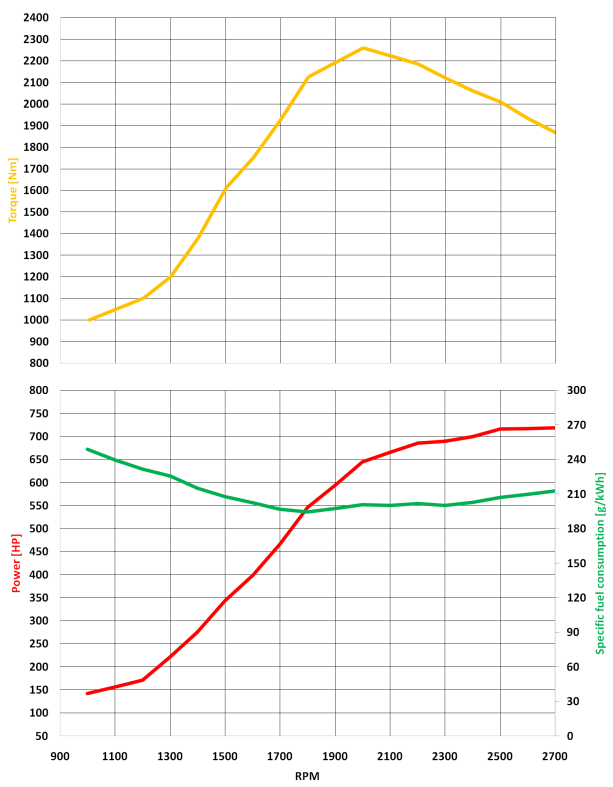

The performance curve chart for the MOD. 700 CR engine illustrates three key parameters plotted against Engine Speed (RPM):
This graph provides a comprehensive view of the engine’s operational efficiency across varying speeds, helping optimize performance and fuel economy.
Torque (Nm)
- Starts around 1000 Nm at 1000 RPM
- Peaks slightly above 2200 Nm at around 2000 RPM
- Gradually decreases after the peak, dropping to about 1900 Nm at 2700 RPM
Power (Kw)
- Starts at around 150 hp at 1000 RPM
- Increases steadily and plateaus around 720 hp between 2400–2700 RPM
Fuel Consumption(gr/kWh)
- Begins high at about 255 gr/kWh at 1000 RPM
- Decreases to a minimum (around 200 gr/kWh) near 1800 RPM
- Then it rises again towards 210 gr/kWh at 2700 RPM

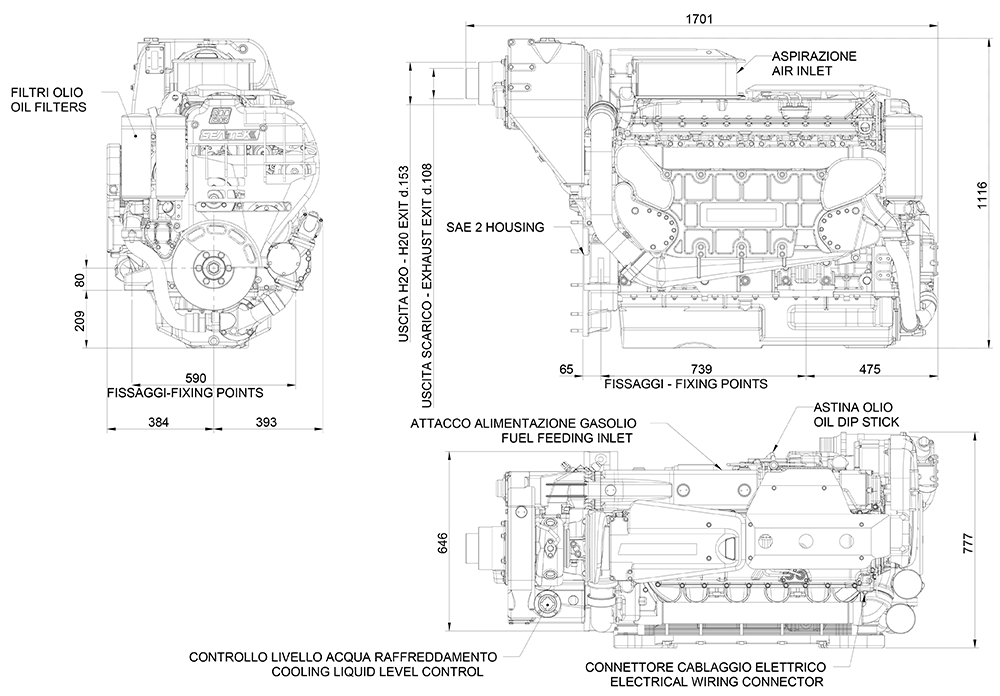

Dimensions
